HSSE
cobalt High Speed Steel
TN2
DIN-333 A

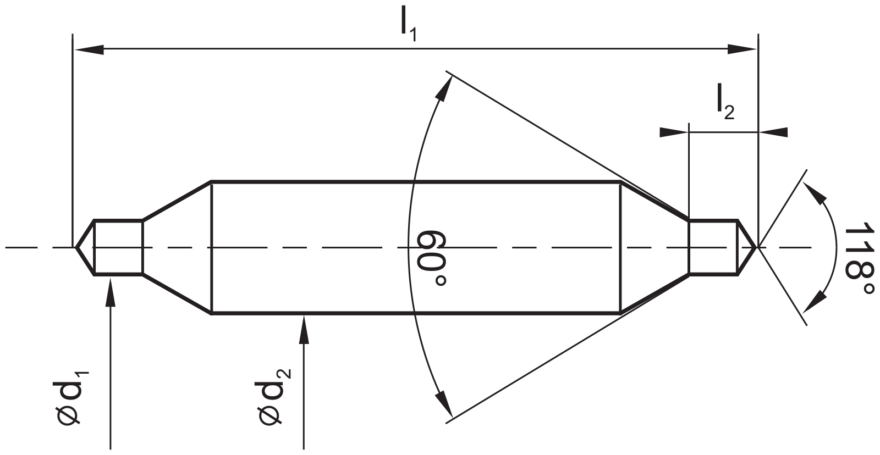

tool dimensions as per DIN-333 A

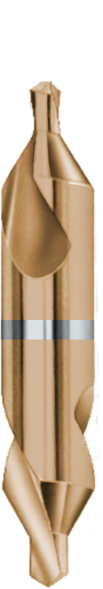

DIN-333 A HSSE TN2

Spotting drills for drilling centre holes.

Protection
TN2

Tools are protected against wear and tear by TN2 coat developed by Fanar. TiAIN is the base of the coat and it forms an ideal temperature barrier, whereas the TiN layer reduces friction.

Application
  • P
    Steels and cast steels
  • M
    Stainless steels
  • K
    Cast iron
  • N
    Non-ferrous materials
  • S
    Super alloys
  • H
    Tempered materials
Dimensions
Index
ød1
ød2
l1
l2(min-max)
K
R
W2-013021-0080
0,8
3,15
25
1,0-1,3
W2-013021-0100
1,0
3,15
31
1,3-1,7
W2-013021-0125
1,25
3,15
31
1,6-2,0
W2-013021-0160
1,6
4,0
35
2,0-2,6
W2-013021-0200
2,0
5,0
40
2,5-3,1
W2-013021-0250
2,5
6,3
45
3,1-3,8
W2-013021-0315
3,15
8,0
50
3,9-4,6
W2-013021-0400
4,0
10,0
55
5,0-5,9
W2-013021-0500
5,0
12,5
63
6,3-7,2
W2-013021-0630
6,3
16,0
71
8,0-8,9
W2-013021-0800
8,0
20,0
80
10,1-11,1
W2-013021-1000
10,0
25,0
100
12,8-13,8
