cobalt High Speed Steel
TN2
DIN-338
tool dimensions as per DIN-338

DIN-338 HSSE TN2

Cobalt steel drill bits DIN-338

Protection
TN2

Tools are protected against wear and tear by TN2 coat developed by Fanar. TiAIN is the base of the coat and it forms an ideal temperature barrier, whereas the TiN layer reduces friction.

Application
  • P
    Steels and cast steels
  • M
    Stainless steels
  • K
    Cast iron
  • N
    Non-ferrous materials
  • S
    Super alloys
  • H
    Tempered materials

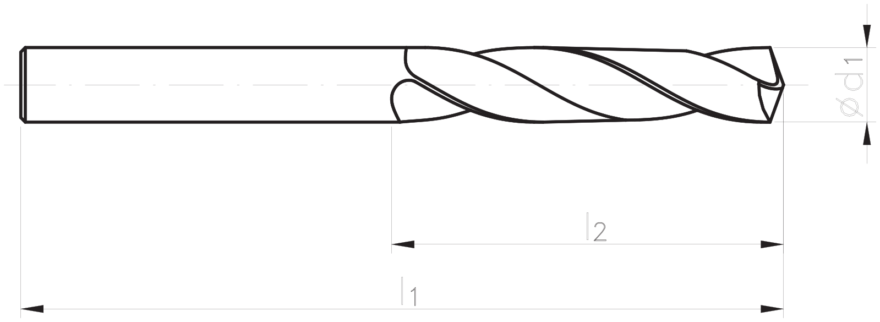

Dimensions
Index
ød1
For taps
For forming taps
l1
l2
L3
ød2h6
W2-103811-0100
1,00
M1,1
34
12
W2-103811-0110
1,10
M1,4
M1,2
36
14
W2-103811-0120
1,20
38
16
W2-103811-0130
1,30
38
16
W2-103811-0140
1,40
40
18
W2-103811-0150
1,50
40
18
W2-103811-0160
1,60
M2
43
20
W2-103811-0170
1,70
43
20
W2-103811-0180
1,80
46
22
W2-103811-0183
1,83
M2
46
22
W2-103811-0190
1,90
M2,3
46
22
W2-103811-0200
2,00
M2,2
49
24
W2-103811-0205
2,05
M2,5
49
24
W2-103811-0210
2,10
49
24
W2-103811-0220
2,20
53
27
W2-103811-0230
2,30
M2,5
53
27
W2-103811-0240
2,40
57
30
W2-103811-0250
2,50
M3
57
30
W2-103811-0260
2,60
57
30
W2-103811-0270
2,70
61
33
W2-103811-0280
2,80
M3
61
33
W2-103811-0290
2,90
M3,5
61
33
W2-103811-0300
3,00
61
33
W2-103811-0310
3,10
65
36
W2-103811-0320
3,20
65
36
W2-103811-0325
3,25
M3,5
65
36
W2-103811-0330
3,30
M4
65
36
W2-103811-0340
3,40
70
39
W2-103811-0350
3,50
M4x0,5
70
39
W2-103811-0360
3,60
70
39
W2-103811-0370
3,70
M4,5
M4
70
39
W2-103811-0380
3,80
75
43
W2-103811-0390
3,90
75
43
W2-103811-0400
4,00
75
43
W2-103811-0410
4,10
75
43
W2-103811-0420
4,20
M5
75
43
W2-103811-0430
4,30
80
47
W2-103811-0440
4,40
80
47
W2-103811-0450
4,50
M5x0,5
80
47
W2-103811-0460
4,60
M5,5
80
47
W2-103811-0465
4,65
M5
80
47
W2-103811-0470
4,70
80
47
W2-103811-0480
4,80
86
52
W2-103811-0490
4,90
86
52
W2-103811-0500
5,00
M6
86
52
W2-103811-0510
5,10
86
52
W2-103811-0520
5,20
M6x0,75
86
52
W2-103811-0530
5,30
86
52
W2-103811-0540
5,40
93
57
W2-103811-0550
5,50
93
57
W2-103811-0555
5,55
93
57
W2-103811-0560
5,60
M6
93
57
W2-103811-0570
5,70
93
57
W2-103811-0580
5,80
93
57
W2-103811-0590
5,90
93
57
W2-103811-0600
6,00
M7
93
57
W2-103811-0610
6,10
101
63
W2-103811-0620
6,20
M7x0,75
101
63
W2-103811-0630
6,30
101
63
W2-103811-0640
6,40
101
63
W2-103811-0650
6,50
101
63
W2-103811-0660
6,60
M7
101
63
W2-103811-0670
6,70
101
63
W2-103811-0680
6,80
M8
109
69
W2-103811-0690
6,90
109
69
W2-103811-0700
7,00
M8x1
109
69
W2-103811-0710
7,10
109
69
W2-103811-0720
7,20
M8x0,75
109
69
W2-103811-0730
7,30
109
69
W2-103811-0740
7,40
M8
109
69
W2-103811-0750
7,50
109
69
W2-103811-0760
7,60
117
75
W2-103811-0770
7,70
117
75
W2-103811-0780
7,80
M9
117
75
W2-103811-0790
7,90
117
75
W2-103811-0800
8,00
M9x1
117
75
W2-103811-0810
8,10
117
75
W2-103811-0820
8,20
M9x0,75
117
75
W2-103811-0830
8,30
117
75
W2-103811-0840
8,40
117
75
W2-103811-0850
8,50
M10
117
75
W2-103811-0860
8,60
125
81
W2-103811-0870
8,70
125
81
W2-103811-0880
8,80
M10x1,25
125
81
W2-103811-0890
8,90
125
81
W2-103811-0900
9,00
M10x1
125
81
W2-103811-0910
9,10
125
81
W2-103811-0920
9,20
M10x0,75
125
81
W2-103811-0930
9,30
M10
125
81
W2-103811-0940
9,40
125
81
W2-103811-0950
9,50
M11
125
81
W2-103811-0960
9,60
133
87
W2-103811-0970
9,70
133
87
W2-103811-0980
9,80
133
87
W2-103811-0990
9,90
133
87
W2-103811-1000
10,00
M11x1
133
87
W2-103811-1010
10,10
133
87
W2-103811-1020
10,20
M12
133
87
W2-103811-1030
10,30
133
87
W2-103811-1040
10,40
133
87
W2-103811-1050
10,50
M12x1,5
133
87
W2-103811-1060
10,60
133
87
W2-103811-1070
10,70
142
94
W2-103811-1080
10,80
M12x1,25
142
94
W2-103811-1090
10,90
142
94
W2-103811-1100
11,00
M12x1
142
94
W2-103811-1110
11,10
142
94
W2-103811-1120
11,20
M12
142
94
W2-103811-1130
11,30
142
94
W2-103811-1140
11,40
142
94
W2-103811-1150
11,50
142
94
W2-103811-1160
11,60
142
94
W2-103811-1170
11,70
142
94
W2-103811-1180
11,80
142
94
W2-103811-1190
11,90
151
101
W2-103811-1200
12,00
M14
151
101
W2-103811-1210
12,10
151
101
W2-103811-1220
12,20
151
101
W2-103811-1230
12,30
151
101
W2-103811-1250
12,50
M14x1,5
151
101
W2-103811-1260
12,60
151
101
W2-103811-1270
12,70
151
101
W2-103811-1280
12,80
M14x1,25
151
101
W2-103811-1290
12,90
151
101
W2-103811-1300
13,00
M14x1
M14
151
101
W2-103811-1320
13,20
151
101
W2-103811-1350
13,50
160
108
W2-103811-1380
13,80
160
108
W2-103811-1400
14,00
M16;M15x1
160
108
W2-103811-1450
14,50
M16x1,5
169
114
W2-103811-1500
15,00
M16x1
M16
169
114
W2-103811-1550
15,50
M18
178
120
W2-103811-1600
16,00
M18x2
178
120
