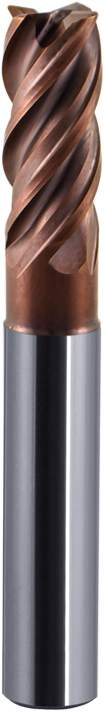

VHM
Solid carbide
TS
42-45
440N/R440N
The most efficient machining of a wide range of materials.
Protection
The TS coat developed by Fanar protects the tools against wear and tear. Applied in state-of-the-art HiPIMS technology that guarantees homogenous coat structure and the highest crack resistance. Silicon contained in the coat allows machining hard and abrasive materials.
Application
-
P Steels and cast steels
-
M Stainless steels
-
K Cast iron
-
N Non-ferrous materials
-
S Super alloys
-
H Tempered materials
Dimensions
Index
ød1
ød2h6
d3
l1
l2
l3
apmax
R
Z - flute number
End mill shank type
M9-44GMA0-0030
3
6
2,8
57
8
14
4
M9-44GMAD-0030
3
6
2,8
57
8
14
0,3
4
M9-44GMA0-0040
4
6
3,8
57
11
17
4
M9-44GMAD-0040
4
6
3,8
57
11
17
0,3
4
M9-44GMA0-0050
5
6
4,8
57
13
19
4
M9-44GMAD-0050
5
6
4,8
57
13
19
0,3
4
M9-44GMA0-0060
6
6
5,5
57
13
21
4
M9-44GMAC-0060
6
6
5,5
57
13
21
0,25
4
M9-44GMA1-0060
6
6
5,5
57
13
21
0,5
4
M9-44GMA3-0060
6
6
5,5
57
13
21
1
4
M9-44GMA0-0080
8
8
7,5
63
19
27
4
M9-44GMA1-0080
8
8
7,5
63
19
27
0,5
4
M9-44GMA3-0080
8
8
7,5
63
19
27
1
4
M9-44GMA0-0100
10
10
9,5
72
22
32
4
M9-44GMA1-0100
10
10
9,5
72
22
32
0,5
4
M9-44GMA3-0100
10
10
9,5
72
22
32
1
4
M9-44GMA4-0100
10
10
9,5
72
22
32
1,5
4
M9-44GMA0-0120
12
12
11,5
83
26
38
4
M9-44GMA1-0120
12
12
11,5
83
26
38
0,5
4
M9-44GMA3-0120
12
12
11,5
83
26
38
1
4
M9-44GMA0-0140
14
14
13
83
26
38
4
M9-44GMA1-0140
14
14
13
83
26
38
0,5
4
M9-44GMA0-0160
16
16
15
92
32
44
4
M9-44GMA1-0160
16
16
15
92
32
44
0,5
4
M9-44GMA3-0160
16
16
15
92
32
44
1,0
4
M9-44GMA7-0160
16
16
15
92
32
44
3
4
M9-44GMA0-0180
18
18
17
92
32
44
4
M9-44GMA1-0180
18
18
17
92
32
44
0,5
4
M9-44GMA0-0200
20
20
19
104
38
55
4
M9-44GMA1-0200
20
20
19
104
38
55
0,5
4
M9-44GMA3-0200
20
20
19
104
38
55
1,0
4
